SWITCHES
MULTIPLE STATION SWITCHES
301
* Please visit the product pages on our website for the most up-to-date product information
MULTIPLE STATION SWITCHES
SERIES IBS
FEATURES

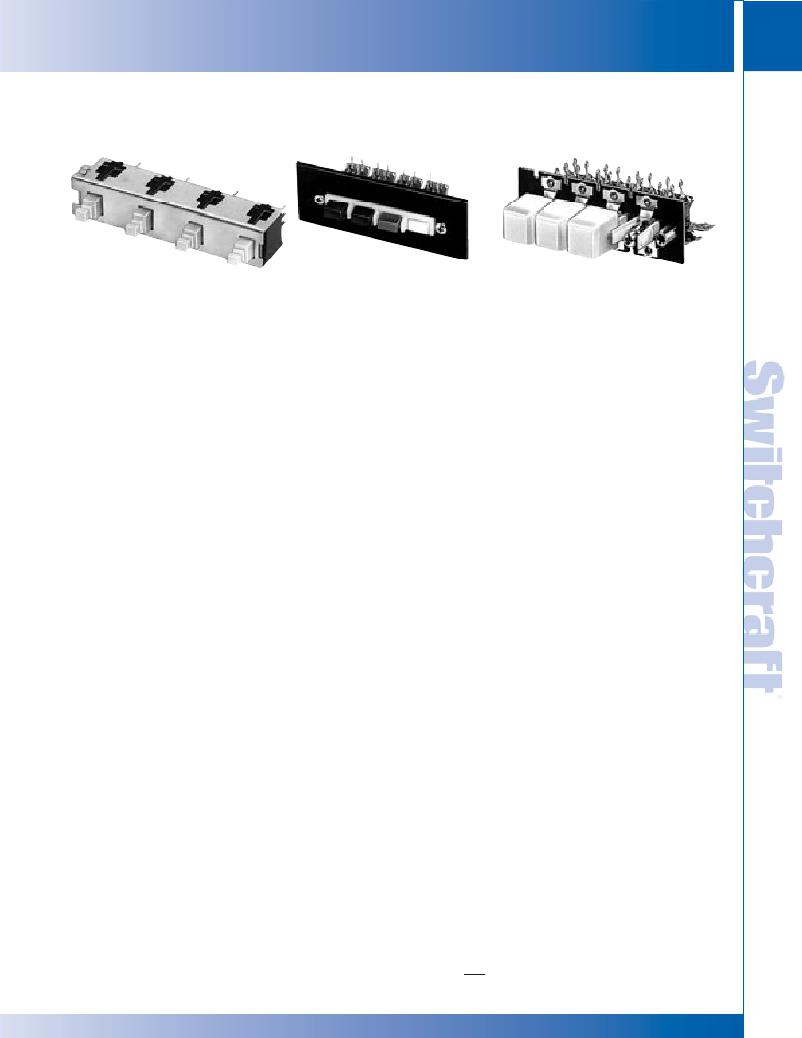

SERIES 65000
DW MULTI-SWITCH
SERIES 66000, 67000
DW MULTI-SWITCH
Switches are designed to meet performance requirements of
sophisticated equipment such as: analog and digital computers,
analyzers, transmitters and receivers, intercoms, machine and
process controls, ground support systems, scientific instruments
and test measurement and instrumentation.
STANDARD MECHANICAL FUNCTIONS
INTERLOCK - actuating a button automatically restores to
normal the button previously actuated. Lock-out feature,
which prevents the mechanical operation of more than one
button at a time, is standard on all interlock switches.
NON-LOCK - each button has momentary action. No interaction
between buttons. Lock-out available on special order only.
ALL-LOCK - all buttons, except release, lock when
depressed (accumulative lock). All buttons restored to normal
by activating release button which has momentary action.
PUSH-LOCK/PUSH-RELEASE - pushbutton locks when
depressed and is released when again depressed.
LOCK-UP - built-in, electrically operated solenoid locks all
stations (in respective positions). Limited to operation of up to
12 stations only and energized from a remote position. Not
available in push-lock/push-release.
SPECIAL ORDER MECHANICAL FUNCTIONS
Mechanical functions on selected series can be intermixed on
the same frame on special order only. Contact factory for
details and availability.
Multi-Switch switches have been designed to readily
accommodate “special” functions at nominal cost. Special
functions are described at right.
Intermixed functions - the following combinations of standard
functions intermixed on the same frame are available:
? Interlock and Non-Lock
? Interlock and Push-Lock/Push-Release
? All-Lock and Non-Lock
? All-Lock and Push-Lock/Push-Release
? Push-Lock/Push-Release and Non-Lock
Lock-out function - Refer to above description under
“Interlock.”
Push-release cancelling function - Speeds programming
and reprogramming of equipment.
Momentary common release function - Permits one or more
momentary common release stations on switch to facilitate
special operating and release sequences.
“Split-interlock” function - Two separate groups of inter-lock
stations on the same frame offers exceptional design latitude and
reduces production line time.
GANGED ASSEMBLIES (Special Order)
Multiple row switching (ganged assemblies) with interaction
between rows are available on special order. Space-saving
ganged assemblies reduce production line assembly, wiring and
testing time. All features of single row switching, including all
standard and special features, are available. Contact Switchcraft
for specifying assistance.
PUSHBUTTONS
Illuminated and non-illuminated switches can be specified with
standard or special pushbuttons. See coverage on individual
series for information.
LEGENDS
Legends can be supplied on illuminated and non-illuminated
pushbuttons. Contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
